90EL2"SCH40 254SMO Austenitic Stainless Steel Elbow
Product Details:
| Place of Origin: | Hebei.china |
| Brand Name: | ZX |
| Model Number: | Elbow |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | $2.93 1-99PCS $2.87 100-999PCS $2.79 1000+PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 7-15Days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 tons per year |
|
Detail Information |
|||
| Material: | Austenitic Stainless Steel | Certification: | ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API |
|---|---|---|---|
| Mtc: | Supply | Usage: | Chemical Industry/Electric Power/Petroleum Field |
| Sample Supply: | Yes | Trademark: | ZX |
| Place Of Origin: | Cangzhou,Hebei | Delivery Time: | 7-15days |
| Origin: | China | Delivery Port: | Tianjin Port Or Shanghai Port |
| High Light: | 254SMO Stainless Steel Elbow,SCH40 Stainless Steel Elbow |
||
Product Description

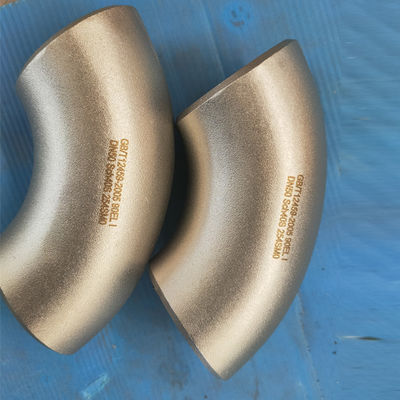

90EL2"SCH40 254SMO Super Austenitic Stainless Steel Seamless Elbow
254SMO is a kind of high -altogenic austenite stainless steel that is supplied in the state of heat processing and annealing. The significant addition of MO, Ni, and CU gives the alloy good anti -point erosion and gap corrosion capabilities, especially in environments containing marinated ions, such as chloride ions, bromine ions and fluoride solution. Therefore, it is widely used in the application of micro -salt water, seawater, pulp factories bleaching plant and other chloride process flow. In these environments, it can become a more expensive nickel and titanium alloy. Taste.
254SMO's golden structure:
254SMO is a facial cubic crystal structure. In order to obtain the Octobic tissue structure, 254SMO usually anneal at the temperature of 1150-1200 degrees Celsius. In some cases, the material center may have traces of the metal phase (phase and alpha phase). But in general, they have no adverse effects on impact strength and corrosion resistance. When placed within the range of 600-1000 degrees Celsius, these phases may precipitate on the particle boundary.
254SMO application field:
254SMO alloy is a multi -purpose material that can be applied to many industrial fields.
1.Petroleum and petrochemical equipment such as ripples in petrochemical equipment.
2.Pulp and paper bleaching equipment, such as pulp cooking device, bleaching equipment, barrel cylinder, pressure roller, etc.
3.The flue gas desulfurization device of the power plant is mainly used to absorb tower body, flue, door panel, internal parts, spraying system, etc.
4.Sea systems or seawater treatment, such as thin -walled cold condensation tube and seawater desalination treatment equipment, even in 5.equipment that may not flow in seawater.
6.Dehydration industry such as salt or salt device.
7.Hot exchangers, especially in chloride ions.
| Elbow Type | Long radius elbow,Short radius elbow, 90 degree elbow, 45 degree elbow,180 degree elbow, reducing elbow. |
| Standard |
ASME B16.9, ASME B16.11, ASME B16.5; JIS B2311,JIS B2312,JIS B2313,JIS B2316; MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2615 SY/T 0510, SH 3408, SH3410 |
| Size | 1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding); 16''~72''(Welded) |
| Wall thickness | SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH100,SCH120,SCH40,SCH160,XXS |
| Manufacturing process | Hot forming, Push, Press, Forge, Cast, etc. |
|
Material
Carbon steel
Stainless steel
Alloy steel
Duplex steel
Nickel alloy steel |
Carbon steel elbow, stainless steel elbow, alloy steel elbow |
|
ASTM A234 WPB, ASTM A420 WPL6, WPL3; ASTM A105 WPB; ASTM A106; ASTM A350 LF2, DIN St37, St45.8, St52.4,St.35.8,St.35.8/I ASTM A333 GR.6, ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42, API 5L GRB, X60, X65, X42,X52, |
|
|
ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
|
|
ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9 A420 WPL8, A420 WPL9 ASTM A335 P5, P9, P11, P12, P22, P91 ASTM A213 ASTM A182 F5,F11,F22,F91 |
|
| ASTM A182 F51/SAF 2205/S31803,F53/SAF 2507/S32750,F60/UNS S32205, | |
| Alloy 200/nickel 200/UNS S2200,Alloy 400/monel 400/UNS 4400,Alloy 600/Inconel 600/UNS 6600,Alloy 201/nickel 201/UNS S2201,Alloy 625/Inconel 625/UNS 6625/NS336,Alloy 800/Incoloy 800/UNS S8800, | |
| Packing |
1)seaworthy wooden box for fittings with size from 1/2"~14" 2)Seaworthy wooden pallet for fittings with size above 14" 3)According to the packing requirement of clients |
| Delivery time | with in 10-30 work days after received the deposit or L/C |
| Shipment | FOB Tianjin, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Elbow application range:
1.For Use With: Air, Natural Gas, Oil, Steam, Water
2.Pressure Class : 150
3.Fabrication: Heat Treated
4.Specifications Met: ANSI/MSS SP-114, ASTM A351
5.Certification: Material Certificate with Traceable Lot Number
6.Pipe Nipples and Pipe: Use Schedule 40 stainless steel
7.Flanges: Use Class 150 stainless steel
